XL250—Temperature and Current Sensor

The XL250 is an advanced IoT device that enables real-time monitoring of both room temperature and electrical current. Designed for compactness and versatility, it’s the ideal solution for intelligent room monitoring in office spaces and server rooms. The XL250 supports a range of accessories, allowing users to customize and extend its functionality.

Supported Sensors:

YHDC-CT Sensors (1V):
- Available in multiple capacities: 5A, 10A, 15A, 20A, 30A, 50A, and 100A
Temperature Sensor:
- DS18B20

Overview

Sensor Diversity
Features 16 temperature sensors and 16 electrical current sensor ports.

Alarm
A built-in alarm system that can be controlled via IoT platform.

Communication Protocol Redundancy
The XL250 communicates using Wi-Fi and LoRa, providing redundancy in communication protocols.

Over-The-Air (OTA) Firmware Update
Allows for easy installation of new firmware on the device.

Specifications

Power Requirements	Temperature Sensor Ports
Voltage: 12V DC Current: 100 mA – 1 A	# of Ports: 16
SCT Sensor Ports	LED Indicators
# of Sensors: 16	# of LEDs: 4 Power Green: On Off: Off WiFi Blue: Connected Off: Disconnected LoRa White: Connected Blink: Bluetooth activated when the board is running (Bluetooth timeout: 10s) Off: Disconnected Alarm Red: Triggered Off: Off
Dimension	Protocol

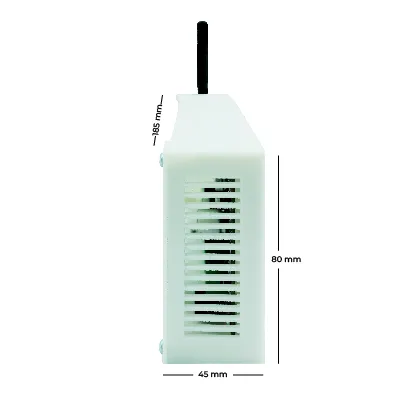

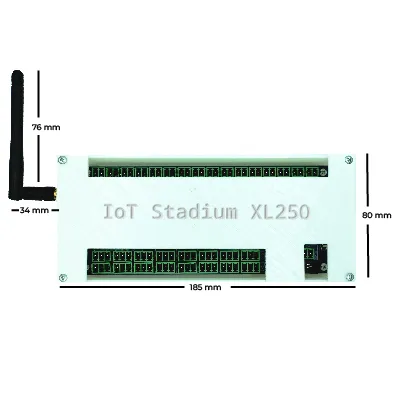

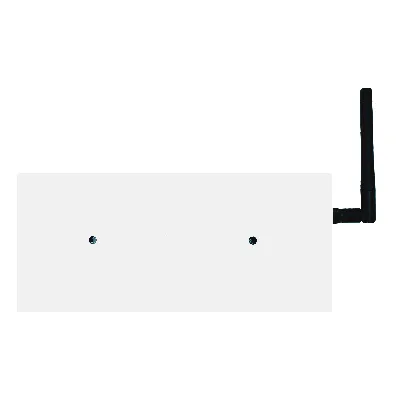

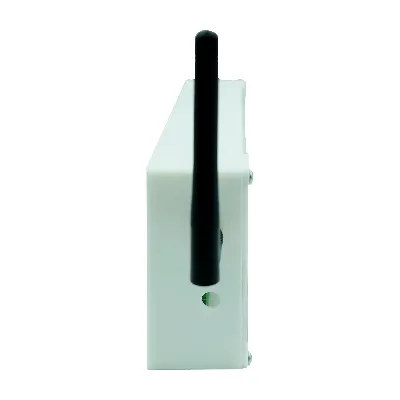

With Case:185 mm x 45 mm x 80 mm (7.28 in x 1.77 in x 3.14 in) Antena: Untucked: 110 mm (4.33 in) Tucked: 34 mm (1.33 in) Board: 170 mm x 75 mm (6.67 in x 2.95 in)	Redundancy between MQTT and LoRaWAN

Firmware

IMPORTANT: Installing different firmware may cause the device to malfunction. Always install the latest version to maintain optimal performance.

Firmware	Release Date	Note
XL 250-tempo-current-sensor.v.1.0	17 Nov 2023	Provisioning AP Mode: Alarm buzzes 2x BLE Mode: Alarm buzzes 1x Provisioning via IoT Stadium Mobile Apps Provisioning Mode: Press the Reset (RST) button twice to turn on BLE mode. BLE will be active for only 10 seconds. You’ll hear 3 beeps, indicating BLE is on. After 10 seconds, you’ll hear 3 beeps again, signaling that BLE is off. Press the RESET button again to change the connected SSID and password.

Manual

Installing XL250 Temperature and Current Sensor's Firmware

Case Studies

This case study explores the numerous uses for the XL250 Temperature and Current Sensor, highlighting its critical function in automation and environmental monitoring.

Environmental Monitoring Application

The XL-250 device proves invaluable in environmental monitoring scenarios:

Temperature and Current Precision
The XL250 excels at providing reliable data on electrical current and temperature, enabling seamless environmental insights.
Indoor Climate Control
The XL250 maintains the ideal indoor temperature in residential and commercial spaces, enhancing the comfort and wellbeing of occupants.
Energy Efficiency
The XL250 helps with energy optimization by keeping track of electrical current, making sure that equipment runs within effective power limits.

Automation Application

The XL-250 device enhances automation capabilities in multiple settings:

Home Energy Management
Intelligent energy management is made possible by integrating XL250 into smart home setups. It regulates the use of appliances, heating, and cooling based on real-time data, increasing efficiency and lowering energy costs.
Industrial Optimization
The XL250 regulates temperature-dependent equipment in industrial settings and makes sure it operates within safe current limits, automating processes. The productivity and equipment longevity are improved by this targeted automation.

Overview

Sensor Diversity
Features 16 temperature sensors and 16 electrical current sensor ports.

Alarm
A built-in alarm system that can be controlled via IoT platform.

Communication Protocol Redundancy
The XL250 communicates using Wi-Fi and LoRa, providing redundancy in communication protocols.

Over-The-Air (OTA) Firmware Update
Allows for easy installation of new firmware on the device.

Specifications

Power Requirements	Temperature Sensor Ports
Voltage: 12V DC Current: 100 mA – 1 A	# of Ports: 16
SCT Sensor Ports	LED Indicators
# of Sensors: 16	# of LEDs: 4 Power Green: On Off: Off WiFi Blue: Connected Off: Disconnected LoRa White: Connected Blink: Bluetooth activated when the board is running (Bluetooth timeout: 10s) Off: Disconnected Alarm Red: Triggered Off: Off
Dimension	Protocol
With Case:185 mm x 45 mm x 80 mm (7.28 in x 1.77 in x 3.14 in) Antena: Untucked: 110 mm (4.33 in) Tucked: 34 mm (1.33 in) Board: 170 mm x 75 mm (6.67 in x 2.95 in)	Redundancy between MQTT and LoRaWAN

Firmware

IMPORTANT: Installing different firmware may cause the device to malfunction. Always install the latest version to maintain optimal performance.

Firmware	Release Date	Note
XL 250-tempo-current-sensor.v.1.0	17 Nov 2023	Provisioning AP Mode: Alarm buzzes 2x BLE Mode: Alarm buzzes 1x Provisioning via IoT Stadium Mobile Apps Provisioning Mode: Press the Reset (RST) button twice to turn on BLE mode. BLE will be active for only 10 seconds. You’ll hear 3 beeps, indicating BLE is on. After 10 seconds, you’ll hear 3 beeps again, signaling that BLE is off. Press the RESET button again to change the connected SSID and password.

Manual

Installing XL250 Temperature and Current Sensor's Firmware

Case Studies

This case study explores the numerous uses for the XL250 Temperature and Current Sensor, highlighting its critical function in automation and environmental monitoring.

Environmental Monitoring Application

The XL-250 device proves invaluable in environmental monitoring scenarios:

Temperature and Current Precision
The XL250 excels at providing reliable data on electrical current and temperature, enabling seamless environmental insights.
Indoor Climate Control
The XL250 maintains the ideal indoor temperature in residential and commercial spaces, enhancing the comfort and wellbeing of occupants.
Energy Efficiency
The XL250 helps with energy optimization by keeping track of electrical current, making sure that equipment runs within effective power limits.

Automation Application

The XL-250 device enhances automation capabilities in multiple settings:

Home Energy Management
Intelligent energy management is made possible by integrating XL250 into smart home setups. It regulates the use of appliances, heating, and cooling based on real-time data, increasing efficiency and lowering energy costs.
Industrial Optimization
The XL250 regulates temperature-dependent equipment in industrial settings and makes sure it operates within safe current limits, automating processes. The productivity and equipment longevity are improved by this targeted automation.
