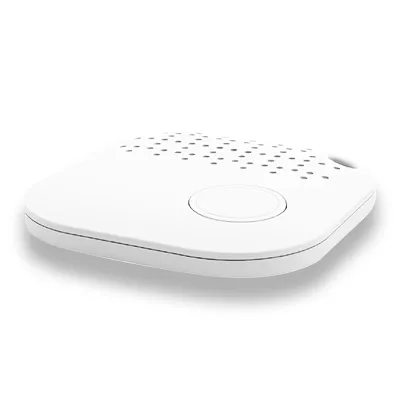

K21 Portable Beacon

K21 Portable Beacon is a compact and portable beacon tag that has durable hardware, robust firmware, and a waterproof design. This beacon is ideal for indoor asset tracking. With keychain hole, this device can be used as a keychain.

Supported by BLE 5.0, the K21 has a wide transmission range of up to 100 meters in open space. Thanks to its energy efficiency, users will only need to change the battery once every 16 months.

Tested Date: 25 February 2025

Features

Long Battery Life
The battery can last up to 16 months.

BLE 5.0
Using less energy than conventional Bluetooth, extends battery life.

Wide Transmission Range
This device can transmit up to 100 meters in open space.

Small and Portable
Easy to carry around and can be used as a keychain.

IP44
Protected from dust and splashes.

Replaceable Battery
The CR2032 battery can be replaced.

Specifications

Battery	Connectivity
Type: CR2032 (replaceable) Battery Life: >16 Months	Bluetooth: BLE4.0/5.0 Distance: 100 meters in the open space Frequency Band: 2.4GHz
Dimension	Working Environment

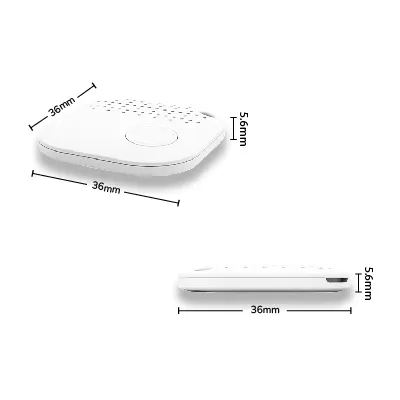

Size: 36mm × 36mm × 5.6mm (1.57in × 2.52in × 0.71in) IP Rating: IP44	Working Temperature: -20 °C ~ 65 °C (-4 °F ~ 149 °F) Storage Temperature: 10 °C ~ 25 °C, ≤65%RH (10 °F ~ 77 °F, ≤65%RH)

Case Studies

Personal Asset Tracking Application

The K21 Portable Beacon enhances everyday tracking by preventing loss and improving convenience.

Keychain Tracker
The beacon’s compact size allows users to attach it to keys, wallets, or other essential items. By pairing it with a mobile app, misplaced objects can be quickly located, reducing search time.
Luggage and Bag Monitoring
Ideal for travelers, the K21 can be placed in luggage or backpacks, helping users track their belongings within a 100-meter range. When used with a BLE gateway, location updates can be accessed remotely.
Pet Tracking
The beacon can be attached to a pet’s collar, allowing owners to monitor their pet’s movements within a designated range. The IP44 rating ensures protection from dust and splashes, making it suitable for outdoor use.

Business Asset Tracking Application

The K21 Portable Beacon is an efficient tool for businesses that need to track and manage assets seamlessly.

Warehouse and Equipment Tracking
Businesses can attach K21 Beacons to essential tools and equipment to prevent misplacement. When used with a BLE gateway, real-time location monitoring helps employees quickly locate items, improving workflow efficiency.
Visitor and Staff Badging
The K21 can be used as a BLE badge for visitor or staff tracking within office buildings or industrial facilities. The beacon’s long battery life (up to 16 months) ensures continuous monitoring without frequent maintenance.
Retail and Inventory Management
Retail stores can attach the K21 to valuable inventory items, ensuring products remain within designated zones. The 100-meter range allows store personnel to quickly track misplaced merchandise and prevent theft.
